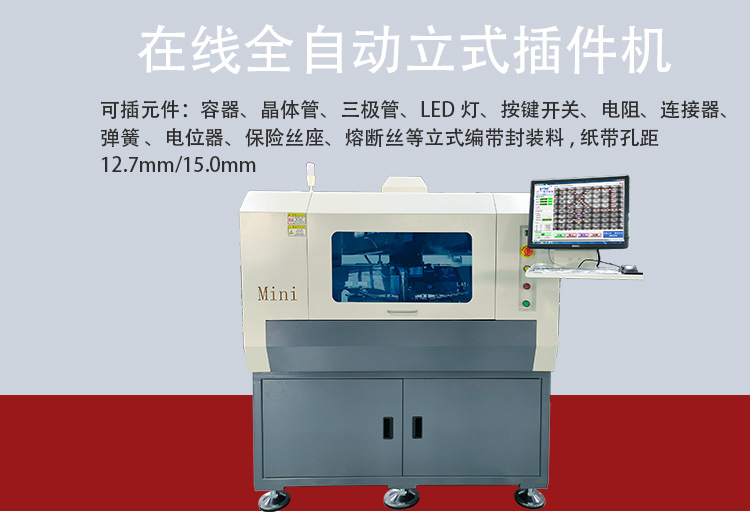

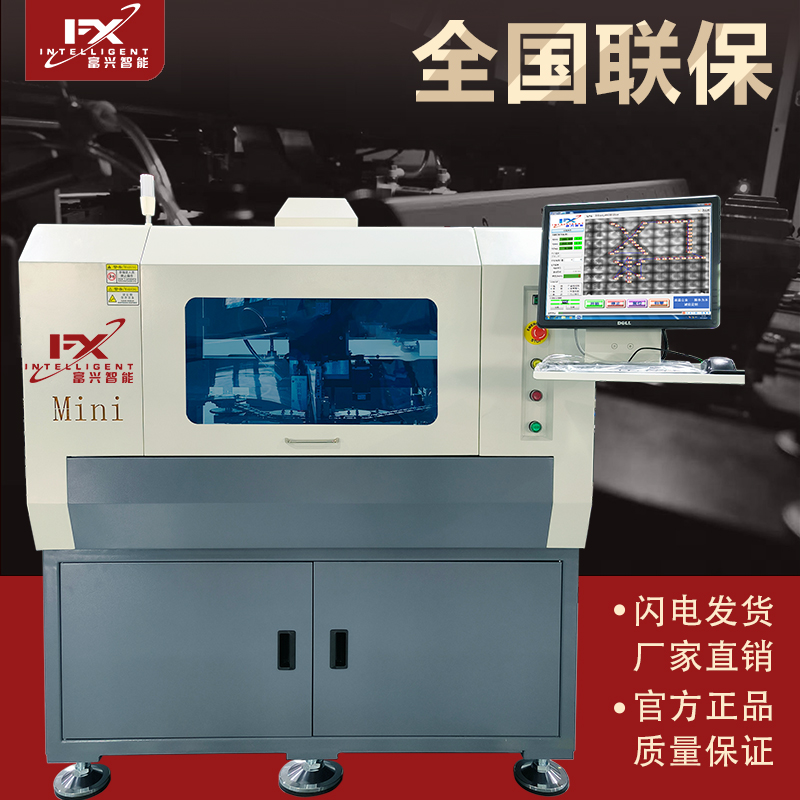

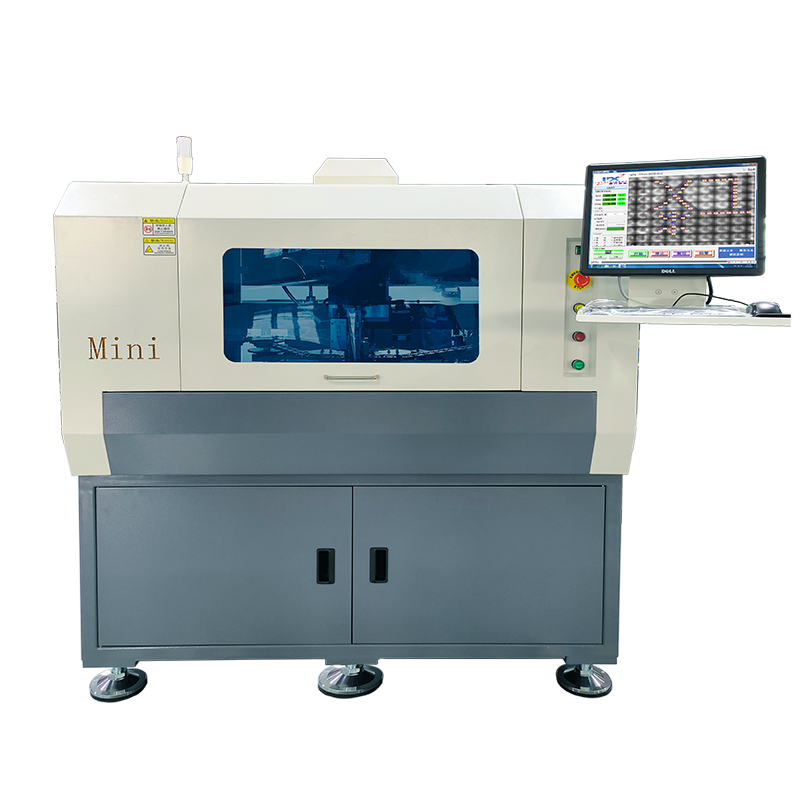

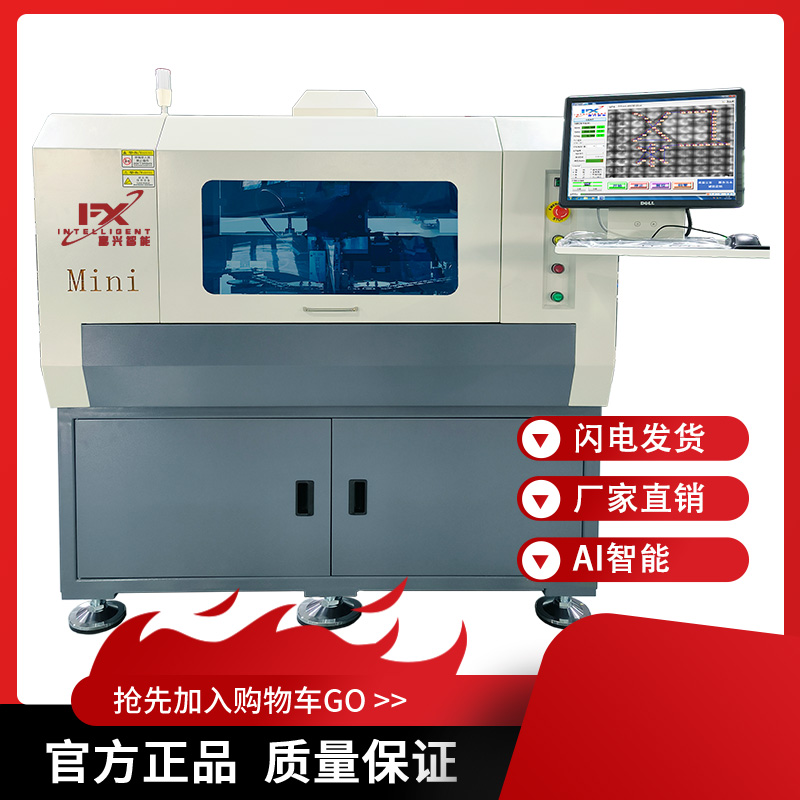

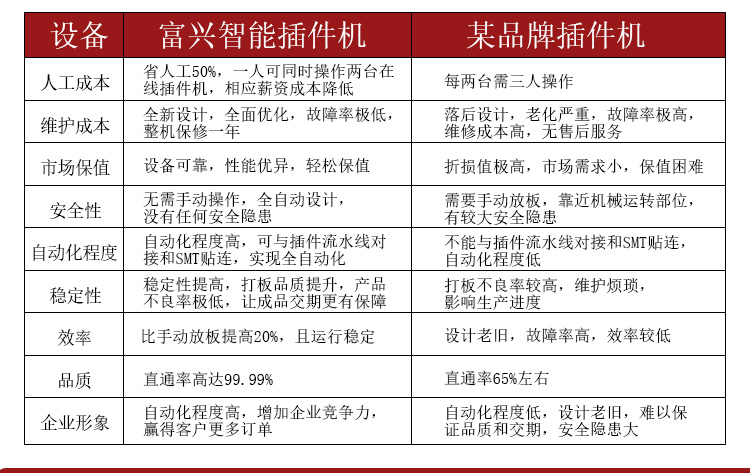

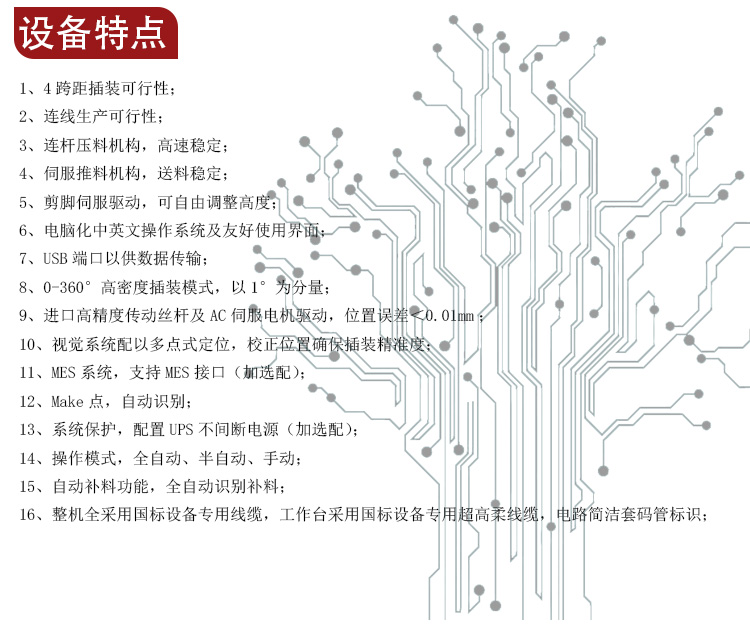

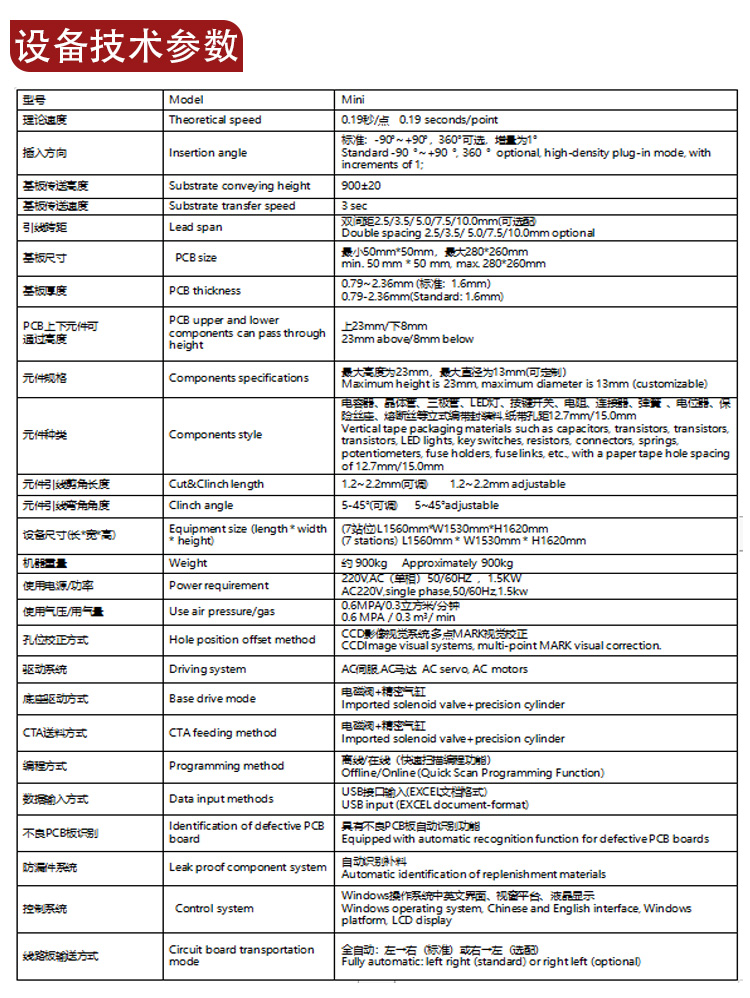

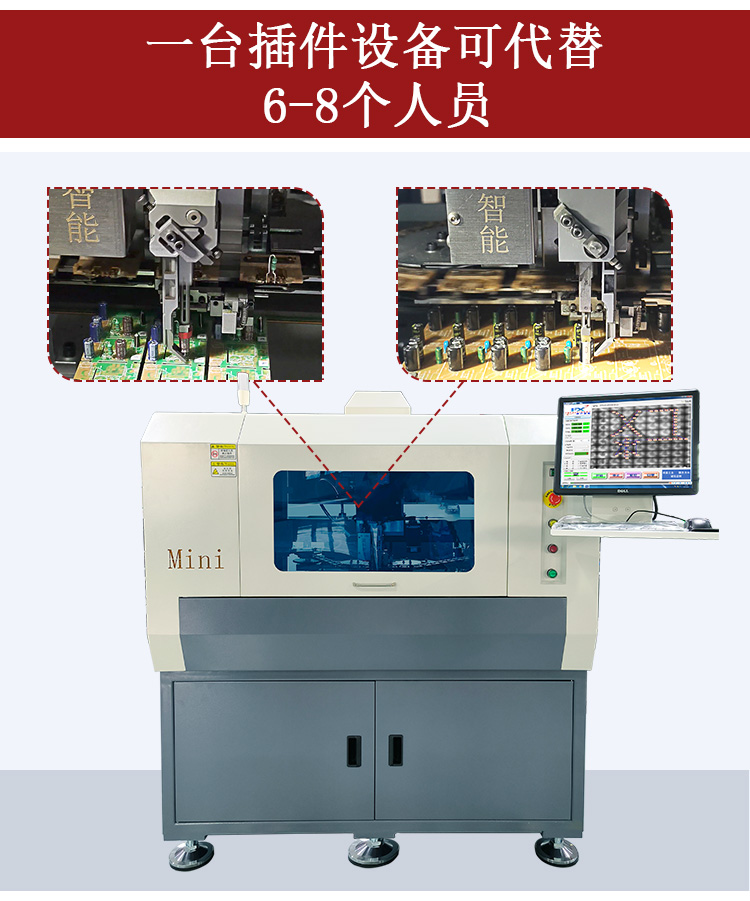

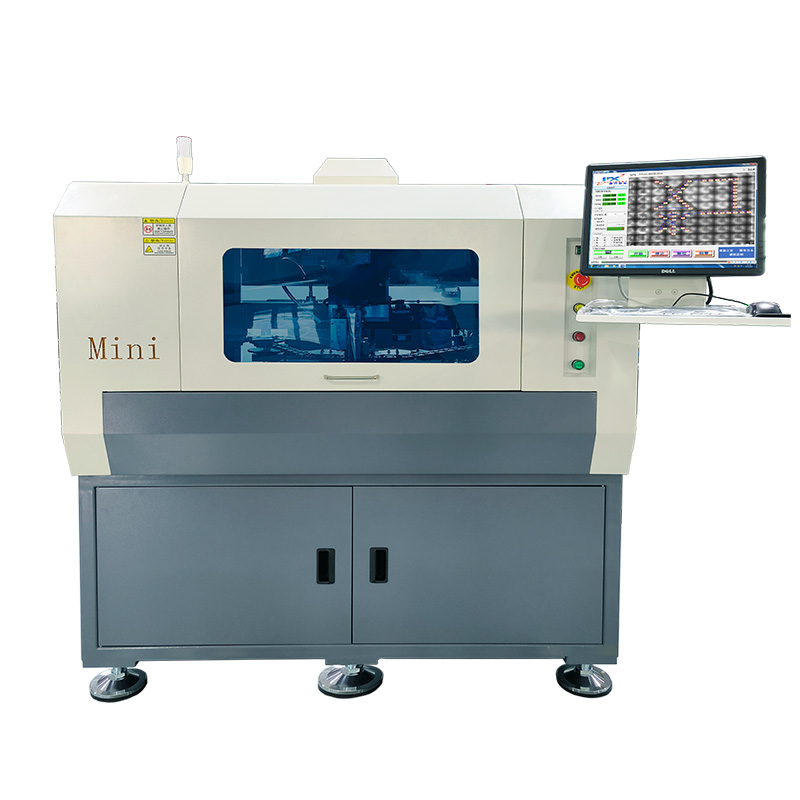

型號

Model

Mini

理論速度

Theoretical speed

0.19秒/點??0.19 seconds/point

插入方向

Insertion angle ?

標準：-90°~+90°，360°可選，增量為1°

Standard -90 °~+90 °, 360 ° optional, high-density plug-in mode, with increments of 1;

基板傳送高度

Substrate conveying height

900±20

基板傳送速度

Substrate transfer speed

3 sec

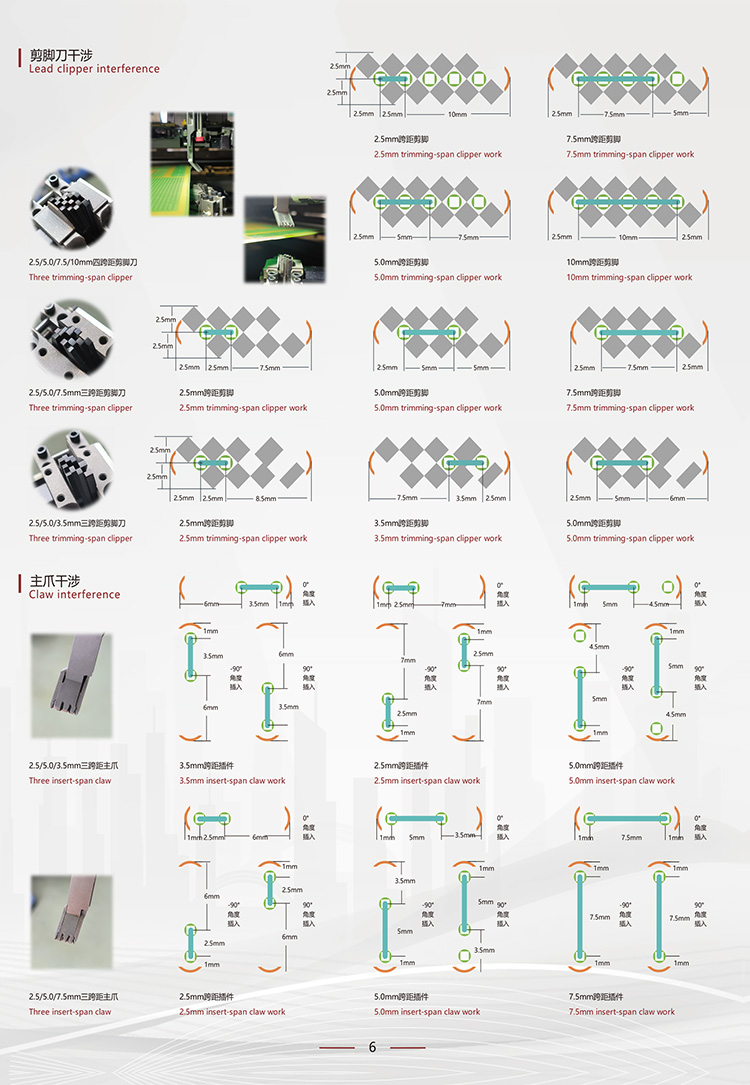

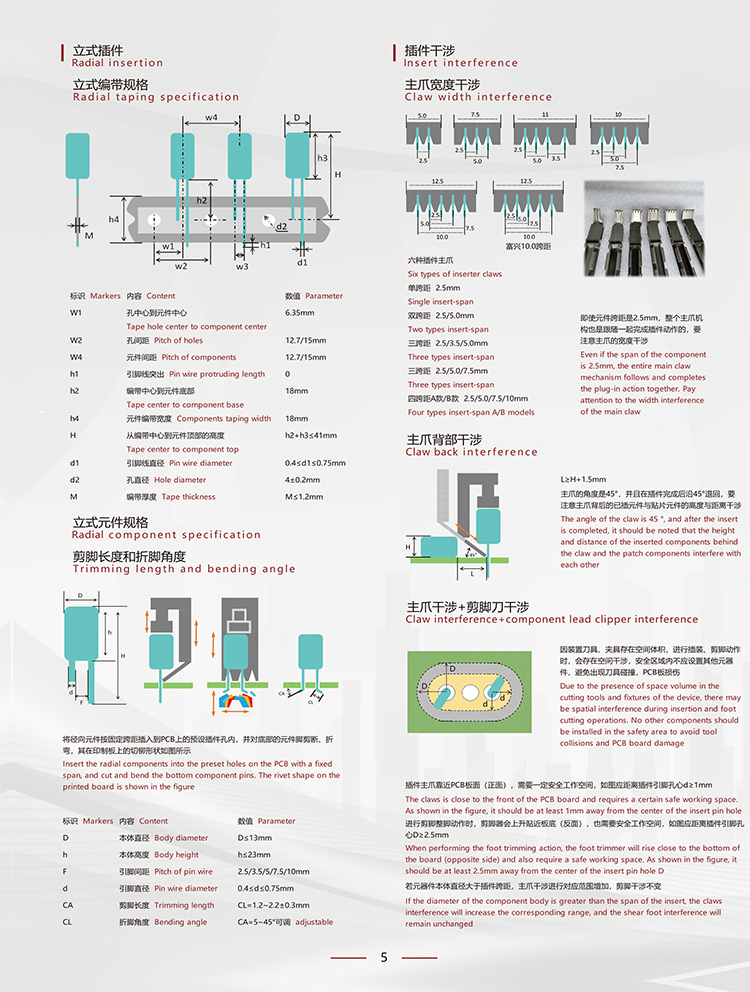

引線跨距

Lead span

雙間距2.5/3.5/ 5.0/7.5/10.0mm(可選配)

Double spacing 2.5/3.5/ 5.0/7.5/10.0mm optional

基板尺寸??

?PCB size

最小50mm*50mm，最大280*260mm

min. 50 mm * 50 mm, max. 280*260mm

基板厚度

PCB thickness ?

0.79~2.36mm (標準：1.6mm） ?
0.79-2.36mm(Standard: 1.6mm)

PCB上下元件可

通過高度

PCB upper and lower components can pass through height

上23mm/下8mm ?

23mm above/8mm below

元件規格?

Components specifications

最大高度為23mm，最大直徑為13mm(可定制）

Maximum height is 23mm, maximum diameter is 13mm (customizable)

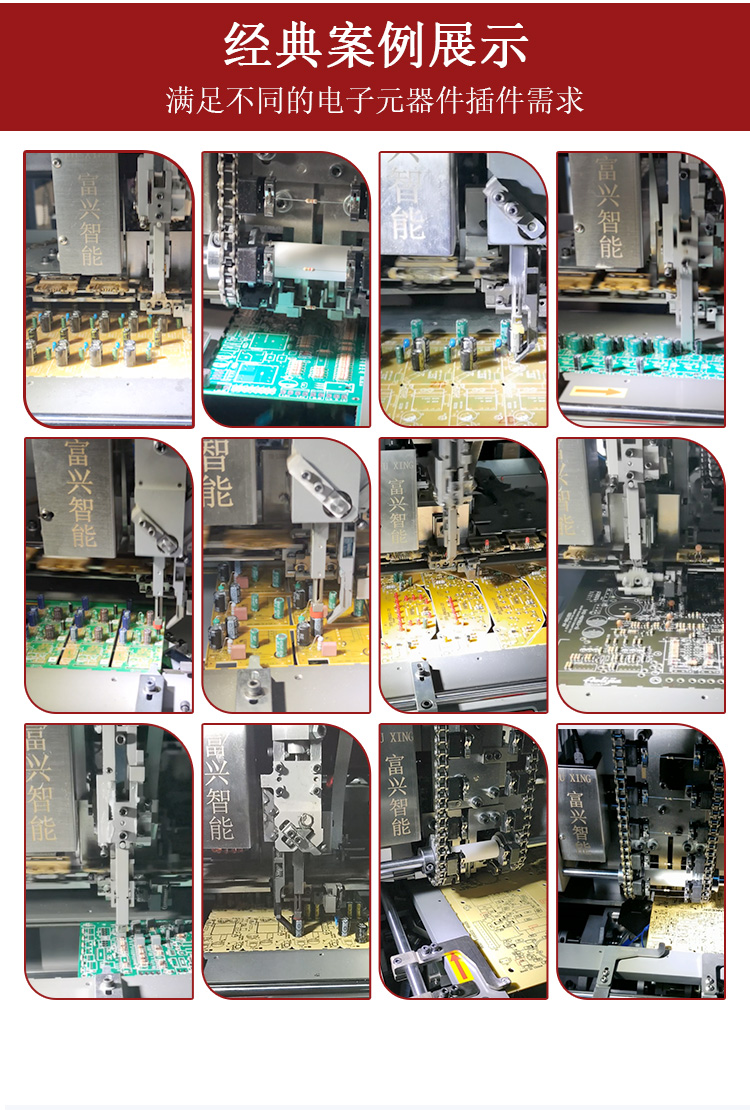

元件種類 ?

Components style

電容器、晶體管、三極管、LED燈、按鍵開關、電阻、連接器、彈簧 、電位器、保險絲座、熔斷絲等立式編帶封裝料,紙帶孔距12.7mm/15.0mm

Vertical tape packaging materials such as capacitors, transistors, transistors, transistors, LED lights, key switches, resistors, connectors, springs, potentiometers, fuse holders, fuse links, etc., with a paper tape hole spacing of 12.7mm/15.0mm

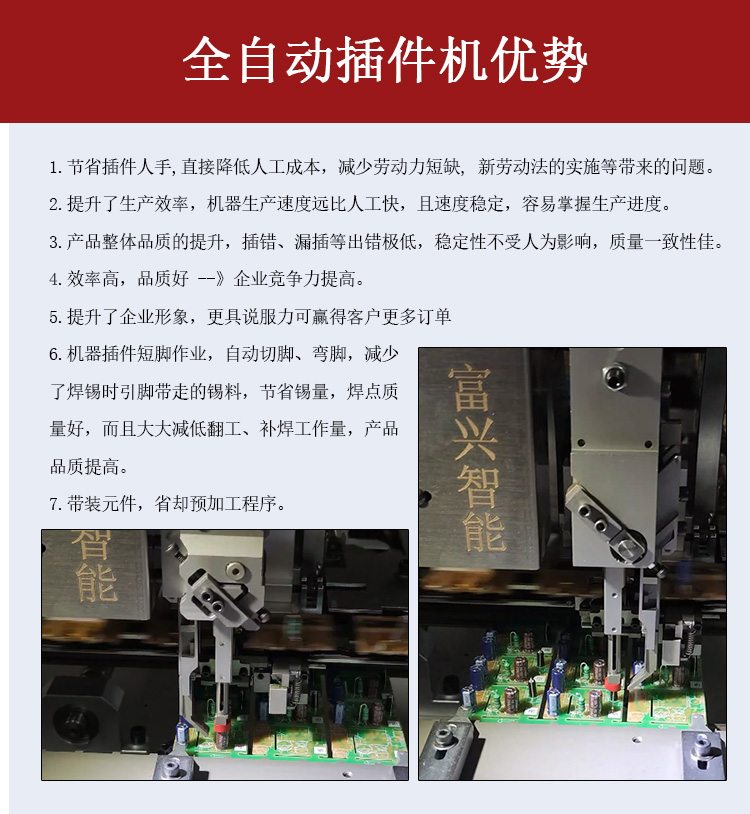

元件引線剪角長度

Cut&Clinch length

1.2~2.2mm(可調)????1.2~2.2mm adjustable

元件引線彎角角度 ?

Clinch angle

5-45°(可調) ??5~45°adjustable

設備尺寸(長*寬*高)

Equipment size (length * width * height)

(7站位)L1560mm*W1530mm*H1620mm

(7 stations) L1560mm * W1530mm * H1620mm

機器重量

Weight

約900kg ??Approximately 900kg

使用電源/功率

Power requirement

220V,AC（單相）50/60HZ ，1.5KW

AC220V,single phase,50/60Hz,1.5kw

使用氣壓/用氣量

Use air pressure/gas

0.6MPA/0.3立方米/分鐘

0.6 MPA / 0.3 m3/ min

孔位校正方式

Hole position offset method

CCD影像視覺系統,多點MARK視覺校正

CCDImage visual systems, multi-point MARK visual correction.

驅動系統

Driving system

AC伺服,AC馬達 AC servo, AC motors

底座驅動方式

Base drive mode

電磁閥+精密氣缸

Imported solenoid valve+precision cylinder

CTA送料方式

CTA feeding method

電磁閥+精密氣缸

Imported solenoid valve+precision cylinder

編程方式

Programming method

離線/在線（快速掃描編程功能）

Offline/Online (Quick Scan Programming Function)

數據輸入方式

Data input methods

USB接口輸入(EXCEL文檔格式)

USB input (EXCEL document-format)

不良PCB板識別

Identification of defective PCB board

具有不良PCB板自動識別功能 ?

Equipped with automatic recognition function for defective PCB boards

防漏件系統?

Leak proof component system

自動識別補料

Automatic identification of replenishment materials

控制系統

?Control system

Windows操作系統中英文界面、視窗平臺、液晶顯示??
Windows operating system, Chinese and English interface, Windows platform, LCD display

線路板輸送方式 ?

Circuit board transportation mode

全自動：左→右（標準）或右→左（選配）

Fully automatic: left right (standard) or right left (optional)
